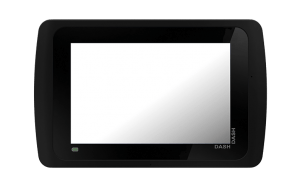

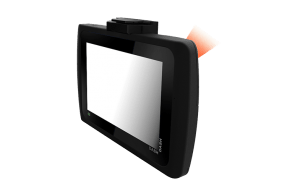

Handheld tablet with InCharge® power management system.

  • Slim and light, only 1.5 lbs. (0.7 kgs)
  • Sealed against spill and dust (IP54)
  • Certified to MIL-STD-810G
  • WiFi 802.11 b/g/n
  • Bluetooth 2.1
  • Windows 8.1 for quicker go-to-market
  • RFID (NFC) option
  • WWAN/LTE option
  • Magnetic stripe / Smart card reader option
  • ID/2D barcode imager option

The DASH T2 is designed provide mobility in many vertical applications. The T2 is sealed against spills and dust and is able to withstand a 4-foot drop. With Windows 8.1 preloaded, application developers will take less time to migrate or develop a mobile application. As a result, the T2 allows a quicker “go-to-market” product release and a larger return on investment.

The T2 is slim and weighs 1.5 lbs. (0.7 kgs). With a variety of integrated peripherals, such as magnetic stripe reader, barcode imager, and WWAN/LTE, this tablet allows mobile professionals to achieve higher productivity.

Model T2
Display Size 7″ with PCT Multitouch
Display Resolution 1280 x 800, 16:10 ratio
Rugged Design IP 54 Rating (water and dust resistant)
MIL-STD-810G (4-foot drop)
CPU Intel Atom Dual Core 1.8GHz
Memory 2GB
Storage 64GB eMMC (Option: additional 32GB microSDHC)
Operating System Windows 8.1
Connectivities USB x 2
Serial RS232
Headphone (3.5mm)
Audio Internal Speaker, Microphone
Control Buttons Power, Home, Trigger
Charging Ports DC-In microUSB
DC-In Barrel
Docking Port
Sensor G-sensor, E-Compass, Gyroscope
Security Software TPM
Battery 3700mAh, 7.4V
Power Adapter AC 100-240V, 12V/2A DC Input
Dimension (WxHxD) 8.82 x 5.59 x 1.02 inches (224x142x25mm)
Weight 1.5 lbs. (0.7 kg)
Temperature Operating: 14° to 122°F (-10° to 50°C)
Storage: -4° to 158°F (-20° to 70°C)
Humidity 5 – 90% non-condensing
Certifications FCC, CE
Dimensions (W x H x D) 10.95 x 8.11 x 1.05 inches (277.8 x 206 x 26.5 mm)
Specifications subject to change.
Part No. Description
T2-A721SF-11 7″ DASH Tablet, Win 8.1 Ind. Pro Retail, No Cameras, No RFID/LTE support
T2-A721SF-A1 7″ DASH Tablet, Win 8.1 Ind. Pro Retail, No Cameras, No RFID & LTE support, EU
T2-A721SF-51 7″ DASH Tablet, Win 8.1 Ind. Pro Retail, Cameras, RFID & LTE support
T2-A721SF-E1 7″ DASH Tablet, Win 8.1 Ind. Pro Retail, Cameras, RFID & LTE support, EU
T2-MSR100 Magnetic stripe reader
T2-SCR101 Smart card (chip) reader
T2-MSC100 Combo Magnetic stripe + smart chip reader
T2-BAR201 1D/2D barcode imager
T2-LTE101 WWAN/LTE/3G module, USA
T2-LTE601 WWAN/LTE/3G module, EU
T2-DOK201 Charging dock (includes LAN, 3xUSB)
