Small Form PCs

Small Form PC
Small Form PC

Small Form PC

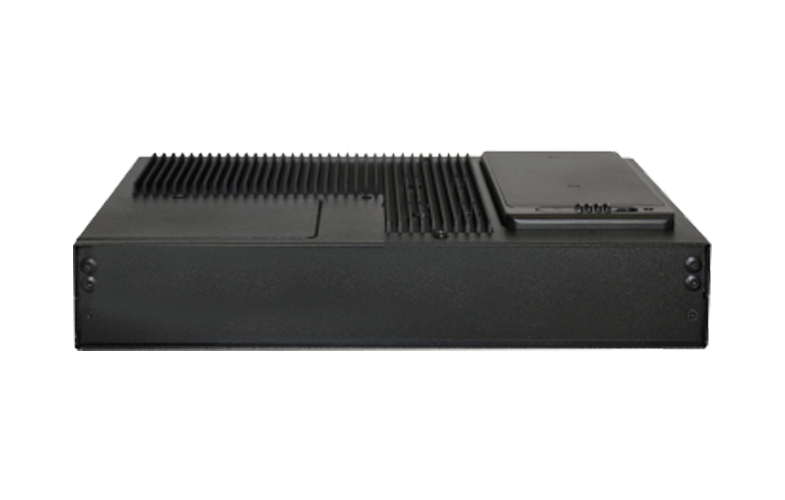

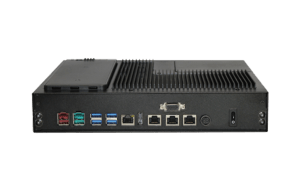

Compact and versatile small form PC.

  • Implements Intel’s processor and its fast networking technology
  • Designed to offer a longer shelf life than other brands
  • Hot-swappable battery
  • Can be configured as a thin client

Pioneer’s Small Form PC for healthcare implements Intel’s processor coupled with Intel’s fast networking technology. This small form PC can be configured as a thin client, running applications of a server. It also has the processing power to run complex applications under Windows.

The Small Form PC is designed to offer a longer shelf life than many other brands. The same model of Small Form PC will generally be available for a minimum of four years (from the release date), which allows large rollouts to install the same model of a period of time.

  • 9.5″ (W) x 7.9″ (D) x 2.7″ (H)
  • External, 150W, 100-220V auto select
  • 0°C to 40° C, Humidity: 20% to 80%
  • FCC, CE


  • Atom DualCore 2GHz, up to Core2Duo 2.5GHz
  • Memory 2GB, or 4GB
  • 200 GB HD, or 40GB SSD
  • Operating System: Windows 7 Pro, POS 7, Linux


  • Intel 10/100/1 G BaseT
  • 4 x Serial, RJ45
  • 6 x USB 2.0
  • 1 x poweredUSB + 12V
  • 1 x poweredUSB + 24V
  • 1 x VGA
